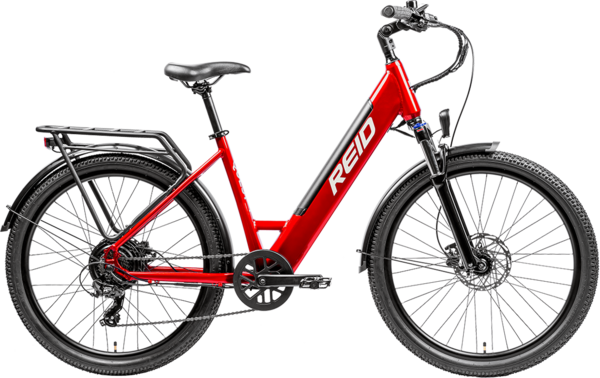

Reid Quest 1 ST USA 500W eBike
Details
The Quest 1.0 is the SUV of eBikes – robust, versatile, and built to handle whatever your ride demands. Designed with a lightweight alloy frame and sleek internal battery, it’s perfect for urban commutes, weekend adventures, or exploring light trails.
Powered by a 500W Jaibo rear hub motor and a 48V 13.4Ah battery, the Quest 1.0 offers reliable performance, with a thumb throttle for effortless acceleration and a range that’s perfect for long rides. The 80mm suspension fork and 27.5x2.35” Kenda tires provide comfort and grip on varied terrains, ensuring a smooth and stable ride.
With a Shimano 7-speed drivetrain, including a Shimano TY300 rear derailleur and 14-28T freewheel, gear changes are intuitive and dependable. When you need to stop, Tektro HD-E350 hydraulic disc brakes with 180mm rotors deliver consistent and confident braking.
Comfort-focused features include 700mm riser handlebars, an adjustable 80mm stem, and a Reid city sport saddle, offering a relaxed and adaptable riding position. The handlebar-mounted LCD display keeps key ride stats at your fingertips, ensuring every journey is as effortless as it is enjoyable.
Tough, comfortable, and capable – the Quest 1.0 is ready to take on the daily grind or weekend exploration with style and ease.
*Please make sure to familiarise yourself with eBike and eScooter safety information before charging or using your new Reid.
| Size | S/M | M/L |
|---|---|---|
| Top Tube Length | 590 | 600 |
| Seat Tube Length | 420 | 470 |
| Head Tube Length | 160 | 160 |
| Seat Tube Angle | 73 | 73 |
| Head Tube Angle | 70 | 70 |
| RC Length | 470 | 470 |
| BB Drop | 45 | 45 |
| Fork Offset | 40 | 40 |
| Wheelbase | 1121 | 1131 |
| Full Fork Length | 480 | 480 |
| Standover | 497 | 490.8 |
| Size | Range (cm) | Range (ft & in) |
|---|---|---|
| M/L | 172 - 182 | 5'8" - 6'0" |
| S/M | 160 - 172 | 5'3" - 5'8" |
This electric bicycle may exceed certain speed or power limits defined for e-bikes depending on local or state regulations. It is the rider’s responsibility to ensure compliance with all applicable laws and use restrictions before operating this bicycle.
Specs
| Frame | Reid alloy MTB with internal battery |
|---|---|
| Fork | 80mm suspension fork |
| Wheels | Reid double wall alloy |
| Hubs | Reid alloy QR/rear hub motor |
| Tires | Kenda 27.5x2.35" |
| Bottom Bracket | Sealed bearing |
| Chainrings | Steel chainset 40T |
| Shifters | L-TWOO 7 speed trigger |
| Cassette/Freewheel | Shimano 7 speed freewheel 14-28T |
| Chain | KMC Z7 |
| Brakes | Tektro HD-E350 180mm rotors |
| Brake Levers | Tektro HD-E350 with brake cut off |
| Handlebars | Reid alloy riser bars 700mm |
| Tape/Grips | Reid ergo rubber |
| Stem | Reid A head 80mm adjustable |
| Seatpost | Reid alloy 30.4mm |
| Saddle | Reid city sport |
| Pedals | Alloy platform, 9/16" steel axle |
| Motor | Jaibo 500w rear hub |
| Battery | Integrated 48v 13.4ah 643wh |
| Controller/Display | LCD handlebar-mounted display |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Red / Small/Medium / 27.5-inch | 5056792203032 | 1248315042 | QUE29978498E |
| Red / Medium/Large / 27.5-inch | 5056792203025 | 1248315047 | QUE37475953M |
