Reid Original MTB
$399.99
$550.00
Details

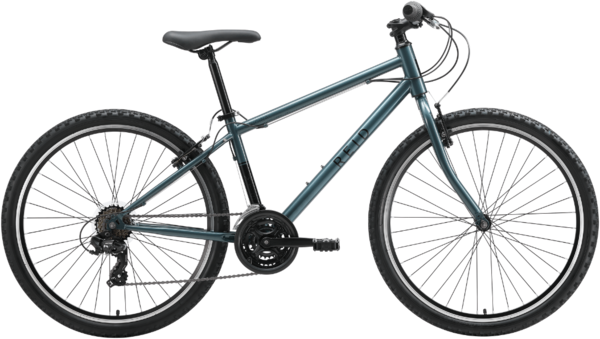

The Original MTB is a classically styled mountain bike made for all-round performance.
With features such as 18-speed Shimano gears, Alloy V-brakes, and sealed headset and bottom bracket it's great value for money. The Original MTB is also built using modern standards such as ahead stem for improved control and serviceability, and double wall rims for strength.
A bike that can take you to work during the week and off-road at the weekends, the Original MTB is built for all-around fun.
| MEASUREMENTS | 38CM | 43CM | 48CM | 53CM |
|---|---|---|---|---|
| Top Tube Length | 556 | 578 | 595 | 615 |
| Seat Tube Length | 381 | 432 | 483 | 533 |
| Head Tube Length | 140 | 140 | 140 | 140 |
| Seat Tube Angle | 73 | 73 | 73 | 73 |
| Head Tube Angle | 71 | 71 | 71 | 71 |
| RC Length | 440 | 440 | 440 | 440 |
| BB Drop | 50 | 50 | 50 | 50 |
| Fork Rake / Offset | 45 | 45 | 45 | 45 |
| Front Centre | 610 | 631 | 649 | 669 |
| Wheelbase | 1040 | 1076 | 1094 | 1114 |
| Fork Length, Full | 365 | 365 | 365 | 365 |
This guide gives a rough estimate of our suggestion for the size of bike you should consider ordering based upon rider height. For a more accurate estimate, we suggest contacting your local Reid distributor.
| Size | Rider Height |
|---|---|
| 38cm (Small) | 5'2" - 5'5" |
| 43cm (Medium) | 5'5" - 5'8" |
| 48cm (Large) | 5'8" - 5'11" |
Specs
| Frame | 26" Hi Ten steel |
|---|---|
| Fork | 26" Hi Ten steel |
| Wheels | Double wall 36H |
| Hubs | Steel QR |
| Tires | 26 x 1.95" MTB |
| Bottom Bracket | Sealed bearing |
| Crankset | 170mm steel 24,34,42T |
| Shifters | Shimano SL-R35 revoshift 21 speed |
| Front Derailleur | Shimano TY500 |
| Rear Derailleur | Shimano TY300 7 speed |
| Cassette/Freewheel | Shimano 14-28 7 speed |
| Chain | KMC 7 speed |
| Brakes | Alloy V brake |
| Brake Levers | Alloy V brake |
| Handlebars | 620mm x 31.8mm |
| Tape/Grips | Comfort rubber |
| Stem | Alloy 90mm Ahead |
| Seatpost | Steel 27.2mm |
| Saddle | Sport MTB |
| Pedals | PVC platform |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Pewter Green / 38cm | 05060779754158 | 1212246938 | 705450 |
