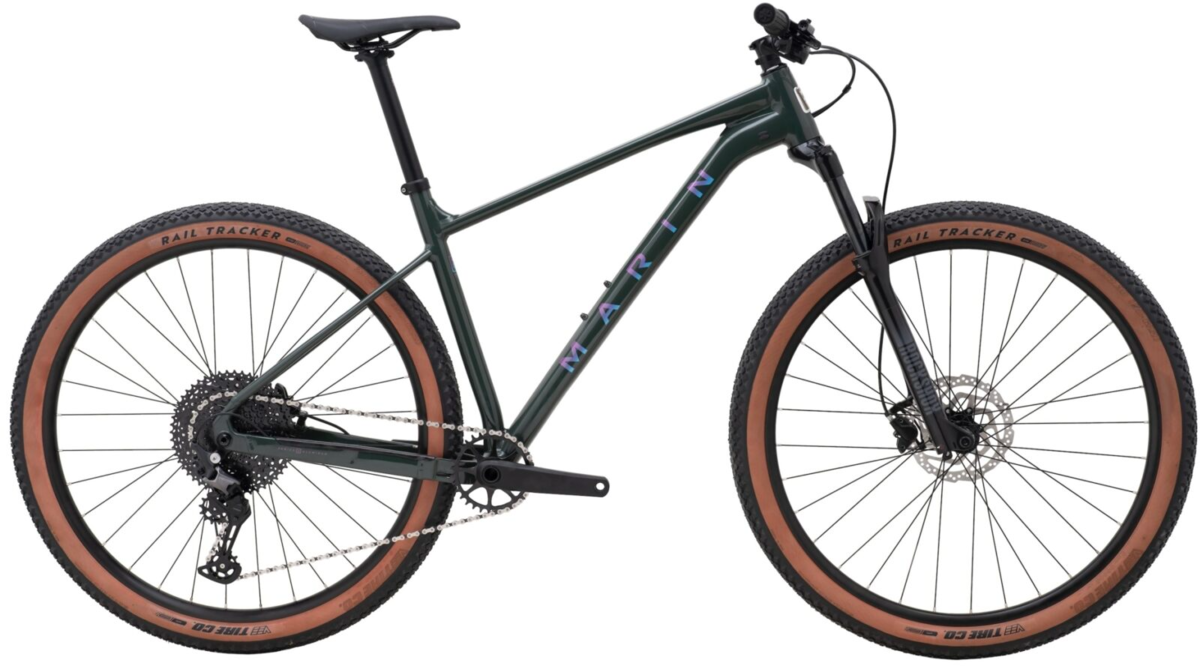

Marin Team Marin 1
Details
We made the Team Marin to be lightning-fast, super composed in the rough-and-tumble of spicy singletrack and perfectly in control up, along and down. It packs all the roll-up-your-sleeves tough of a trail bike and the zip you’d expect from an XC racer to perfectly blend speed with fun. Because who said XC had to be so serious?!
Champagne dreams on a cola budget. The Team Marin 1 brings XC-racer performance to a privateer price-point, all whilst staying super fun and super capable in the singletrack.
We started with a high-end Series 4 aluminum frame and fast-rolling 29” wheels and then added a capable RockShox Judy Silver fork, 12-speed Shimano drivetrain, Shimano hydraulic brakes and Vee Tire rubber to create a super fun, super affordable XC trail shredder.
| FRAME SIZE | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|
| STACK (mm) | 613.9 | 618.5 | 623.05 | 632.3 |
| REACH (mm) | 410 | 430 | 450 | 485 |
| HEADTUBE ANGLE | 67° | 67° | 67° | 67° |
| HEADTUBE LENGTH (mm) | 97 | 102 | 107 | 117 |
| SEATTUBE ANGLE | 74° | 74° | 74° | 74° |
| SEATTUBE LENGTH (mm) | 381 | 431 | 482 | 520 |
| TOPTUBE EFFECTIVE (mm) | 586 | 607.3 | 628.7 | 666.3 |
| BB HEIGHT (mm) | 319.75 | 319.75 | 319.75 | 319.75 |
| BB DROP (REAR/FRONT) (mm) | 58 | 58 | 58 | 58 |
| CHAINSTAY (mm) | 425 | 425 | 425 | 425 |
| WHEELBASE (mm) | 1122.4 | 1144.3 | 1166.3 | 1205.19 |
| STANDOVER HEIGHT (mm) | 678.7 | 707 | 753.5 | 786.5 |
| FORK OFFSET (mm) | 44 | 44 | 44 | 44 |
| SEATPOST DIAMETER (mm) | 30.9 | 30.9 | 30.9 | 30.9 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 |
| STEM LENGTH (mm) | 35 | 35 | 35 | 35 |
| CRANK LENGTH (mm) | 170 | 175 | 175 | 175 |
Specs
| Frame | Series 4 6061 Aluminum, 29" Wheels, Superlight Aluminum, Flat Mount Rear Brake, Internal Shifter and Dropper Post Routing, 148x12mm Boost Thru-Axle |
|---|---|
| Fork | RockShox Judy Silver TK, 120mm Travel, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset |
| Rims | Marin Aluminum Double Wall, 29mm Inner, Sleeve Joint, Disc Specific, Tubeless Compatible |
| Hubs |
Front: Forged Aluminum, 110x15mm, Disc, 32H Rear: Forged Aluminum, 148x12mm, Disc Specific, 32H |
| Spokes | 14g Black Stainless Steel |
| Tires | Vee Tire, Rail Rocco XC, 29x2.3", Dual Control Compound, Folding Bead, Tubeless Ready |
| Bottom Bracket | External Sealed Cartridge Bearings |
| Crankset | Forged Alloy 1x12, Hollow Spindle, Steel Narrow Wide 32T Chainring |
| Shifters | Shimano Deore, SLM6100, 12-Speed |
| Rear Derailleur | Shimano Deore, RDM6100, 12-Speed |
| Cassette/Freewheel | SunRace, 12-Speed, 11-51T |
| Chain | KMC X12 |
| Brakes | Tektro HDR285 Hydraulic, 180mm Rotor |
| Brake Levers | Tektro Hydraulic |
| Handlebars | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 4º Up, 9º Back |
| Tape/Grips | Marin Single Clamp Locking |
| Stem | Marin 3D Forged Alloy, 35mm |
| Headset | FSA No 42ACB, 1 1/8" x 1 1/2” |
| Seatpost | Marin Alloy, 30.9mm |
| Saddle | Marin Speed Concept |
| Pedals | Marin Oso OEM Nylon Platform |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Solid Green / Small / 29-inch | 843346130617 | 739088001 | TEA266052610 |
| Solid Green / Medium / 29-inch | 843346130624 | 739088002 | TEA253945340 |
| Solid Green / Large / 29-inch | 843346130631 | 739088003 | TEA266360700 |
| Solid Green / X-Large / 29-inch | 843346130648 | 739088004 | TEA266042660 |
